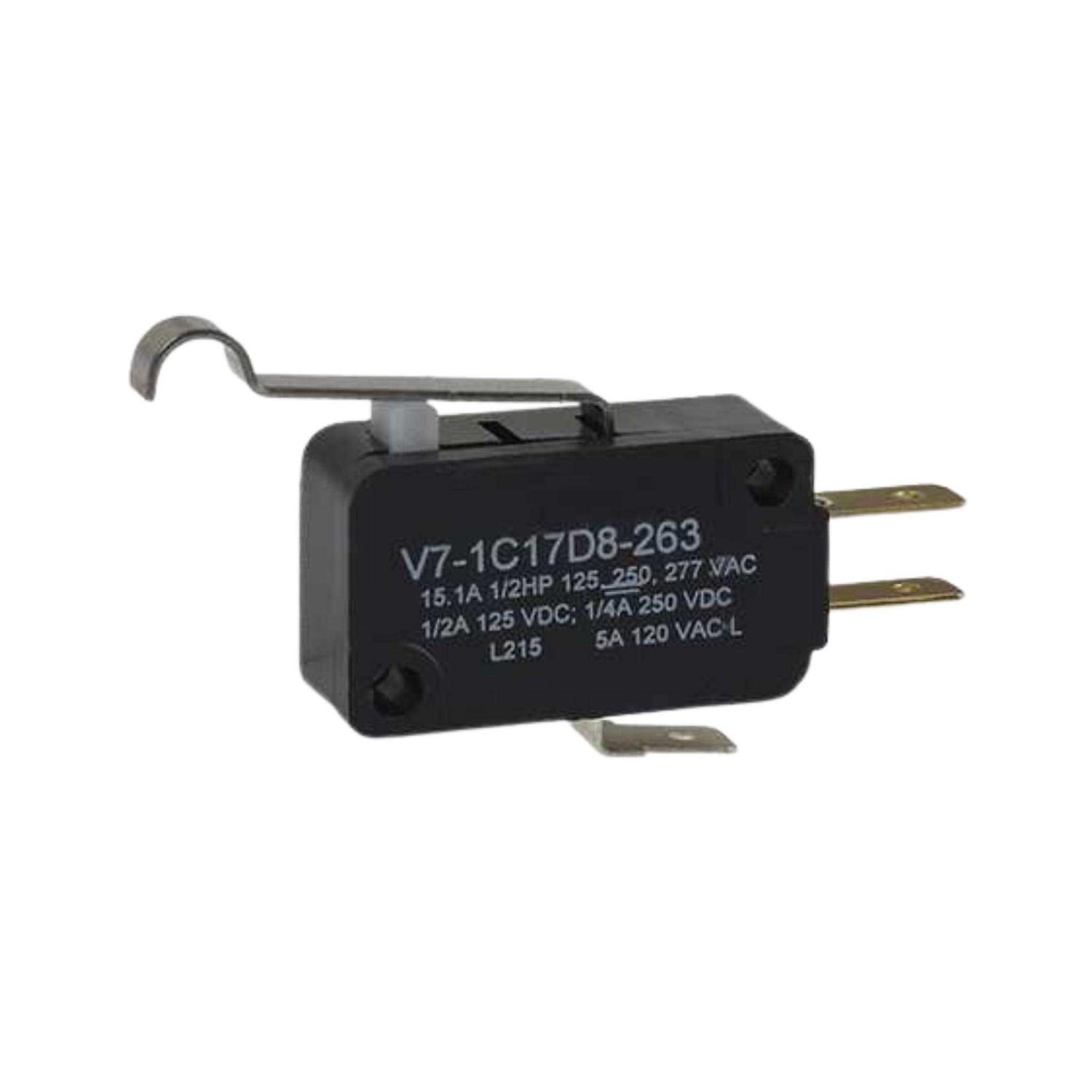

Honeywell V7-1C17D8-263 Switch

This Microswitch miniature switch features quick-connect terminals and a simulated roller lever actuator. It is designed to operate in temperatures ranging between -40 and 180 F. This listing is for each. Technical Specification Snap Action Switch Type Miniature Snap Action Switch Basic Actuator Type – Snap Action Switch Lever Actuator Type – Snap Action Switch Lever, Simulated Roller Item Miniature Snap Action Switch AC Contact Rating – Snap Action Switch 15A @ 240V DC Contact Rating – Snap Action Switch 0.5A @ 125V Contact Form- Switches SPDT Lever Actuator Length – Snap Action Switch 1.29 in Height – Snap Action Switch 0.63 in Width – Snap Action Switch 1.14 in Depth – Snap Action Switch 0.4 in Electrical Connection – Snap Action Switch 3/16 in Quick Connect Mounting Dimension – Snap Action Switch 0.87 in Centers Number of Circuits – Snap Action Switch 1 Watertight – Snap Action Switch No Series V7 Operating Force 3.2 oz Max. Pretravel 0.11 in Release Force 0.31 oz Differential Travel 0.024 in Over Travel 0.061 in Operating Temp. Range -40 Degrees to 180 Degrees F Housing Material PCT Polyester Thermoplastic Standards CSA, UL
